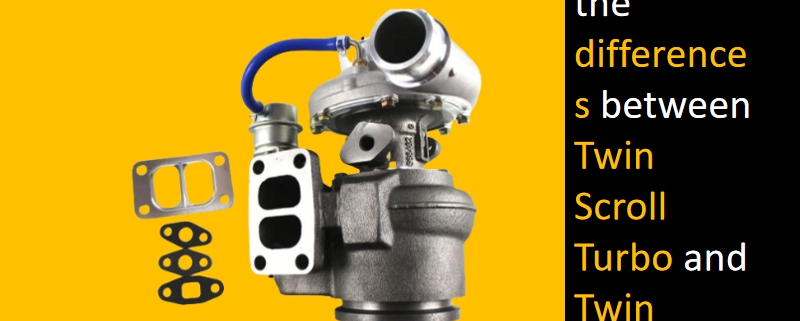

What Are The Differences Between Twin Scroll Turbo And Twin Turbo?

What Is Twin Scroll Turbo?

The twin-scroll turbocharger employs two separate intake passages on a single turbocharger, and divides the airflow via carefully designed intake manifold. This reduces the inertia of the turbocharger, enhances responsiveness at low speeds, and provides a broader torque curve. This design is typically used to improve engine efficiency and performance.

Twin  Scroll turbo  Working Principle:

The twin-scroll turbo system enhances engine performance and responsiveness, especially at low speeds and low loads, by separating the exhaust flow and optimizing the intake design.

Turbocharger layout: Unlike traditional single turbochargers, the twin-scroll turbocharger utilizes two independent intake passages and two exhaust passages, with each turbine connected to one intake and one exhaust passage.

Exhaust flow separation: The engine’s exhaust flow is divided into two parts and directed through separate exhaust passages into the turbocharger. During each exhaust stroke, one portion of the exhaust gases is allocated to one turbine, while the other portion is directed to the other turbine.

Turbocharger operation: The two turbines are arranged in parallel on the same shaft but are designed with different sizes or angles to better accommodate different exhaust flows. This enhances the efficiency and responsiveness of the turbines.

Intake flow merging: Contrary to the exhaust flow, the twin-scroll turbocharger merges the two intake passages into a single intake duct after compressing the air, which is then delivered to the engine’s intake system. This design increases the speed and density of the intake air and optimizes cylinder filling.

Advantages: The primary advantages of the twin-scroll turbocharger are its faster acceleration response and higher torque output at low speeds. By separating the exhaust flow and distributing it to different turbines, this design reduces turbine inertia and improves efficiency. Additionally, the optimized intake flow design can enhance combustion efficiency, further improving engine performance and fuel economy.

What Is Twin Turbo

The twin turbo(also known as bi turbo) consists of two turbochargers, typically with a smaller turbocharger utilized for low-speed and low-load conditions, while a larger turbocharger is employed for high-speed and high-load situations. This setup provides a broader power range and faster power response.

Twin-turbo Working Principle:

The twin turbo system enhances engine performance and efficiency by harnessing the energy of exhaust gases to boost the engine.

Exhaust-driven: When the engine is running, exhaust gases are expelled through the exhaust manifold, and their energy can be used to drive the turbocharger. These exhaust gases are directed to the intake side of the turbocharger.

Turbocharger: Each turbocharger consists of a turbine, which is mounted on a shaft and connected to the exhaust flow. As the exhaust gases flow through the turbine, it begins to rotate. The rotating turbine is connected via the shaft to another turbine, which is also connected to the engine’s intake system.

Boosting: The rotating turbine drives a compressor, which compresses a large volume of air and pushes it into the engine’s intake system. This increases the engine’s oxygen supply, thereby improving fuel combustion efficiency and increasing engine output power.

Dual-turbo design: The two turbochargers in the twin-turbocharging system are typically designed to work in different speed ranges, with one turbine used for low-speed and low-load conditions, and the other for high-speed and high-load conditions. This ensures sufficient boosting effect under different operating conditions, providing a broader power range and faster power response.

What is the difference between Twin Scroll Turbo and Twin Turbo?

A twin scroll turbo is a type of turbo that has two chambers, a twin turbo means two separate turbochargers.

The Application Range Of Twin  Scroll Turbo:

Twin-turbocharging is commonly used in vehicles seeking higher performance

For small and mid-sized cars: Many small and mid-sized cars adopt twin-scroll turbocharging systems to balance performance and fuel economy. These vehicle models typically prioritize low-speed response and fuel efficiency.

For sports cars and performance models: Some sports cars and performance models also employ twin-scroll turbocharging systems to provide smooth power delivery and quicker acceleration response.

For efficient engines: In some vehicles striving for efficiency, such as hybrid vehicles or eco-friendly models, twin-scroll turbocharging systems can help improve fuel economy.

The Application Range Of Twin Turbo:

Twin-scroll turbos are more often utilized in vehicles aiming for a balance between performance and fuel efficiency.

High-performance cars: Many high-performance cars utilize twin-turbocharging systems to provide higher power and acceleration performance. These vehicle models may include supercars, luxury sedans, and high-performance sports cars.

Luxury sedans and SUVs: Some luxury brands of sedans and SUVs adopt twin-turbocharging systems to deliver smoother power delivery and superior driving performance.

Racing cars: In some racing vehicles, especially in endurance races and elite competitions, twin-turbocharging systems can provide the required high power output and performance.
