Sensing Precision: The Dynamic Duo of Crankshafts and Sensors

in

What Is a Crankshaft and Where Is It in the Engine

The crankshaft is a crucial component in an internal combustion engine. It is typically a sturdy, metal shaft with multiple offset journals and crankpins, and it is designed to withstand the forces generated during engine operation.

Location and function

In an engine, the crankshaft is located in the engine block. It runs the length of the block, is positioned longitudinally, and is supported by bearings along its length. The crankshaft is connected to the pistons through connecting rods. As the pistons move up and down in the engine’s cylinders, they transmit this motion to the crankshaft through the connecting rods. The main purpose of the crankshaft is to convert the linear motion of the pistons into rotational motion. This rotational motion is then transferred to the transmission and ultimately to the wheels in a vehicle, providing the power needed for the vehicle to move.

What Is the Crankshaft Sensor and Where Is It in the Engine

The crankshaft sensor, also known as the crank position sensor, is a vital component in modern engine management systems.

Location and function

The exact location of the crankshaft sensor may vary between different vehicles and engine designs, but is usually located near the crankshaft or on the transmission bell housing; in some engines, it may also be mounted near the flywheel or harmonic balancer.

The crankshaft sensor works by detecting the position of the crankpin of the crankshaft as it rotates. This information is then sent to the ECU, allowing it to synchronize fuel injection and ignition timing. The sensor typically generates a signal based on the rotation of teeth or notches on a reluctor wheel connected to the crankshaft.

What Causes the Crankshaft to Go Bad?

The crankshaft, a pivotal component in an engine, may experience deterioration or failure due to various reasons, often influenced by everyday driving behaviors. Here are the primary reasons along with corresponding driving actions:

1. Lack of Lubrication:

Infrequent oil changes or the use of low-quality oil can lead to inadequate lubrication. Over time, this results in increased friction and wear on the crankshaft.

2. Oil Contamination:

Neglecting to replace the oil filter or using contaminated oil introduces debris, dirt, or metal particles into the engine. This accelerates wear on the crankshaft bearings.

3. Overheating:

Prolonged high-speed driving, heavy loads, or insufficient coolant levels contribute to engine overheating. Elevated temperatures weaken the structural integrity of the crankshaft.

4. Vibration and Misalignment:

Rough driving on uneven surfaces, encountering potholes, or driving with unbalanced tires induces excessive vibrations. Misalignment of engine components can also stress the crankshaft.

5. Excessive Revving:

Rapid acceleration, particularly without allowing the engine to warm up adequately, stresses the crankshaft. Frequent high-revving without sufficient lubrication can cause premature wear.

What Causes the Crankshaft Sensor to Go Bad?

In daily driving, the following common reasons may cause damage to the crankshaft position sensor:Sensing Precision: The Dynamic Duo of Crankshafts and Sensors

1. Wear and Tear:

Extreme driving conditions, such as frequent stop-and-go traffic, driving on rough terrain, or exposing the vehicle to severe weather conditions, can contribute to increased wear and tear on engine components, including the crankshaft position sensor.

2. Contamination:

The engine environment is not always clean, and contaminants such as dirt, oil, or debris can find their way into the sensor housing. Contamination can interfere with the sensor’s functionality, leading to inaccurate readings or complete failure.

3. Electrical Issues:

Problems with the electrical system, such as short circuits or open circuits, can affect the crankshaft sensor’s performance. Faulty wiring or connections can disrupt the sensor’s ability to send accurate signals to the engine control unit (ECU).

4. Heat Exposure:

Driving a vehicle with an overheating engine can expose the crankshaft position sensor to excessive heat. Prolonged exposure to high temperatures can affect the sensor’s electronic components, leading to malfunctions or failure. Heat-related issues are more common in sensors that are poorly shielded or located near hot engine parts.

5. Incorrect Air Gap:

The air gap between the crankshaft sensor and the reluctor wheel (a toothed wheel on the crankshaft) is crucial for proper sensor operation. If the air gap is too large or too small, it can result in inaccurate readings and sensor failure. Proper installation and adjustment are essential.

6. Oil or Fluid Leaks:

Oil or other fluids leaking onto the sensor can cause damage. Oil is a common culprit, as it can degrade the sensor’s materials and affect its electrical connections. Identifying and fixing any leaks promptly can help prevent sensor damage.

7. Age and Mileage:

 As a vehicle ages and accrues mileage, the wear on various components, including the crankshaft position sensor, naturally increases. Regular inspections become more critical in older vehicles to catch and address potential issues early.

How to Test and Replace Crankshaft Position Sensor

Testing and replacing the crankshaft position sensor is a crucial aspect of maintaining your vehicle’s engine health. Here’s a step-by-step guide on how to test and replace the crankshaft position sensor.

Testing the Crankshaft Position Sensor:

1. Prepare the Vehicle:

1)Ensure the vehicle is in a safe and secure location.

2)Turn off the engine and disconnect the battery.

2. Locate the Sensor:

1)Refer to your vehicle’s repair manual to locate the crankshaft position sensor. It’s typically positioned near the crankshaft pulley or the crankshaft itself.

3. Inspect the Wiring:

Examine the sensor’s wiring for any visible damage, wear, or loose connections.

Repair or replace any damaged wiring before proceeding.

4. Use a Multimeter:

1)Set a multimeter to the resistance (ohms) setting.

2)Connect the multimeter probes to the sensor’s electrical terminals.

3)Compare the resistance reading with the specifications outlined in your vehicle’s repair manual.

5. Check for Voltage:

1)Set the multimeter to the voltage setting.

2)Connect the probes to the sensor’s electrical terminals.

3)Have a helper crank the engine while observing the multimeter for voltage spikes.

6. Inspect the Sensor’s Signal:

1)Use a diagnostic scan tool to monitor the sensor’s signal while cranking the engine.

1)Ensure the sensor produces a consistent and accurate signal.

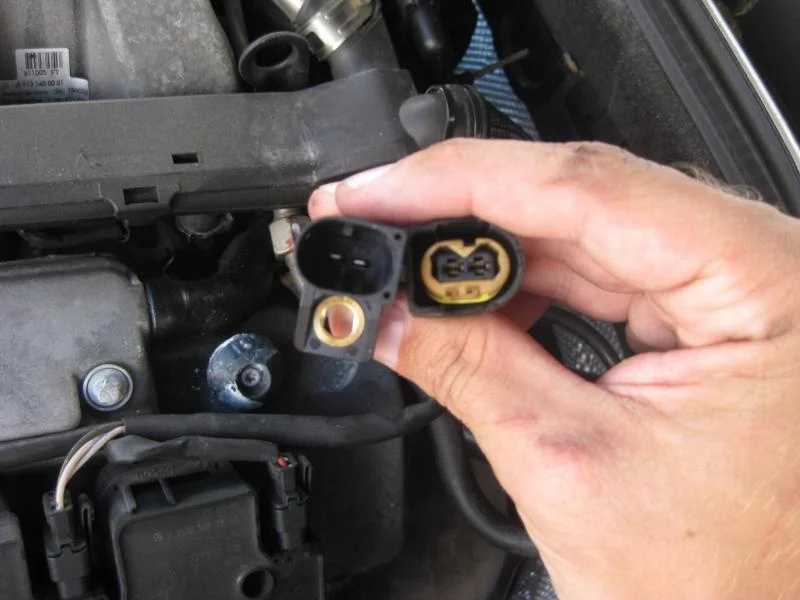

Replacing the Crankshaft Position Sensor:

1. Locate the Sensor:

Identify the sensor’s position in the engine compartment. It’s typically near the crankshaft, often behind or near the harmonic balancer.

2. Disconnect the Battery:

Ensure safety by disconnecting the vehicle’s battery to prevent electrical mishaps during the replacement process.

3. Remove Electrical Connections:

Disconnect any electrical connectors attached to the sensor. Exercise caution to avoid damaging the wiring.

4. Remove Mounting Bolts:

Unfasten the mounting bolts securing the sensor in place. This may require specialized tools depending on the vehicle model.

5. Extract the Old Sensor:

Gently remove the old sensor from its location. Be mindful of any clips or fasteners that may be holding it in place.

6. Install the New Sensor:

Place the new crankshaft position sensor in the same position as the old one. Ensure a secure fit and proper alignment.

7. Secure with Bolts:

Tighten the mounting bolts to secure the new sensor in place. Follow the manufacturer’s specifications for torque values.

8. Reconnect Electrical Connections:

Reattach any electrical connectors that were disconnected earlier. Double-check for secure connections.

9. Reconnect the Battery:

Reconnect the vehicle’s battery to restore power to the system.

10. Test the Sensor:

Start the vehicle and verify that the new sensor functions correctly. Check for any warning lights or issues with the engine’s performance.

11. Clear Error Codes (if necessary):

If the replacement triggered any error codes, use an OBD-II scanner to clear them, ensuring the proper functioning of the vehicle’s diagnostics.

Always refer to the vehicle’s repair manual or consult with a professional mechanic for specific guidance tailored to the make and model. If unsure, seeking assistance from a qualified technician is recommended for accurate sensor replacement and optimal engine performance. Additionally, adopting smooth driving habits, avoiding aggressive maneuvers, and ensuring proper engine warm-up contribute to the longevity of engine components, including the crankshaft.

FAQs:

Q: Can a malfunctioning crankshaft sensor damage the engine?

A: While it won’t directly damage the engine, it can lead to poor performance, reduced fuel efficiency, and increased emissions.

Q: How often should the crankshaft sensor be replaced?

A: There’s no fixed interval. However, if you notice symptoms like difficulty starting, poor acceleration, or erratic idling, it’s wise to have it inspected.

Q: Can I drive with a bad crankshaft sensor?

A: While possible, it’s not advisable. A malfunctioning sensor can lead to engine stalling or failure, compromising safety.

Q: What happens if I dont relearn the crankshaft position sensor?

A: Failure to perform the relearning process may result in suboptimal engine operation and reduced overall vehicle performance.

Q: Will disconnecting the battery reset the crankshaft sensor

A: Disconnecting the battery may reset some engine control module (ECM) parameters, but it doesn’t necessarily reset the crankshaft sensor. The crankshaft sensor’s position and timing information are vital for the engine’s proper operation. If there are issues with the crankshaft sensor, it’s recommended to follow the manufacturer’s procedures for testing, replacing, and relearning the sensor, rather than relying on battery disconnects. Resetting the battery alone may not address specific sensor-related issues.
